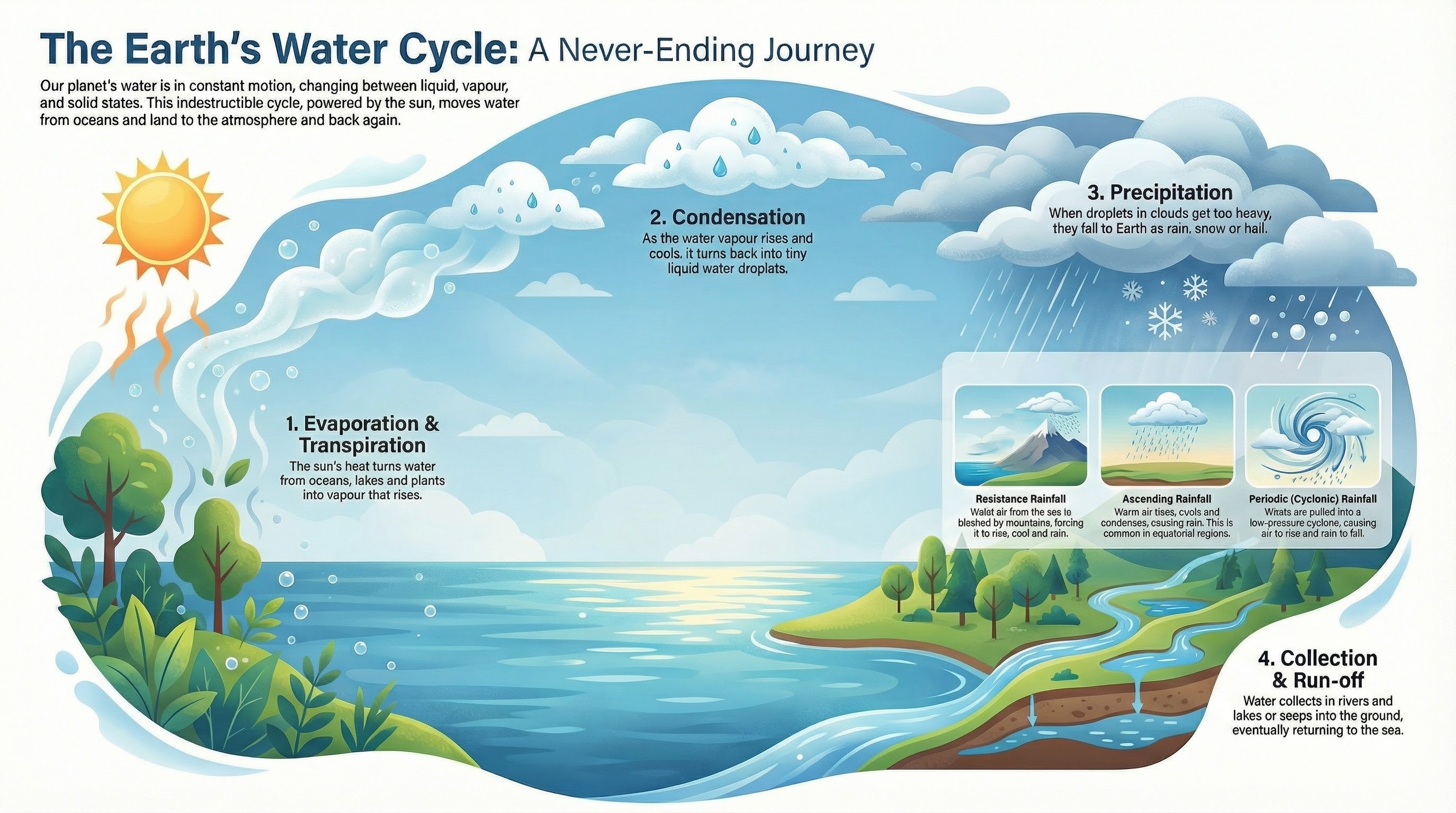

Infographic

🧠

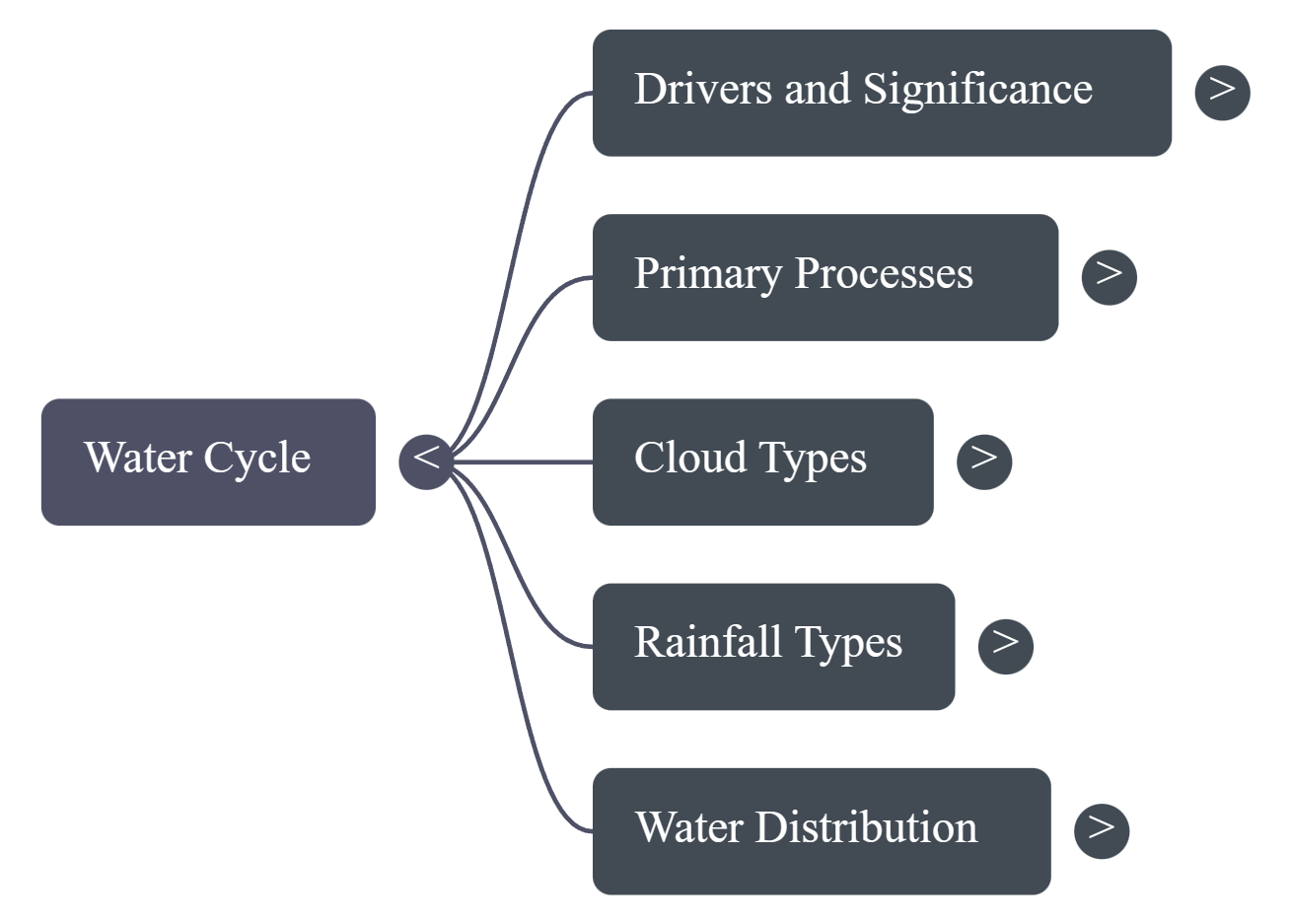

Mind Map

📑

Slide Deck

1 / 15

📥 Download PDF

🎬

Video Overview

🎧

Audio Overview

Listen to an AI-generated podcast-style discussion about the Water Cycle concepts:

📘

Study Guide

📝 Short-Answer Quiz

Answer the following questions in 2-3 sentences based on the provided source material.

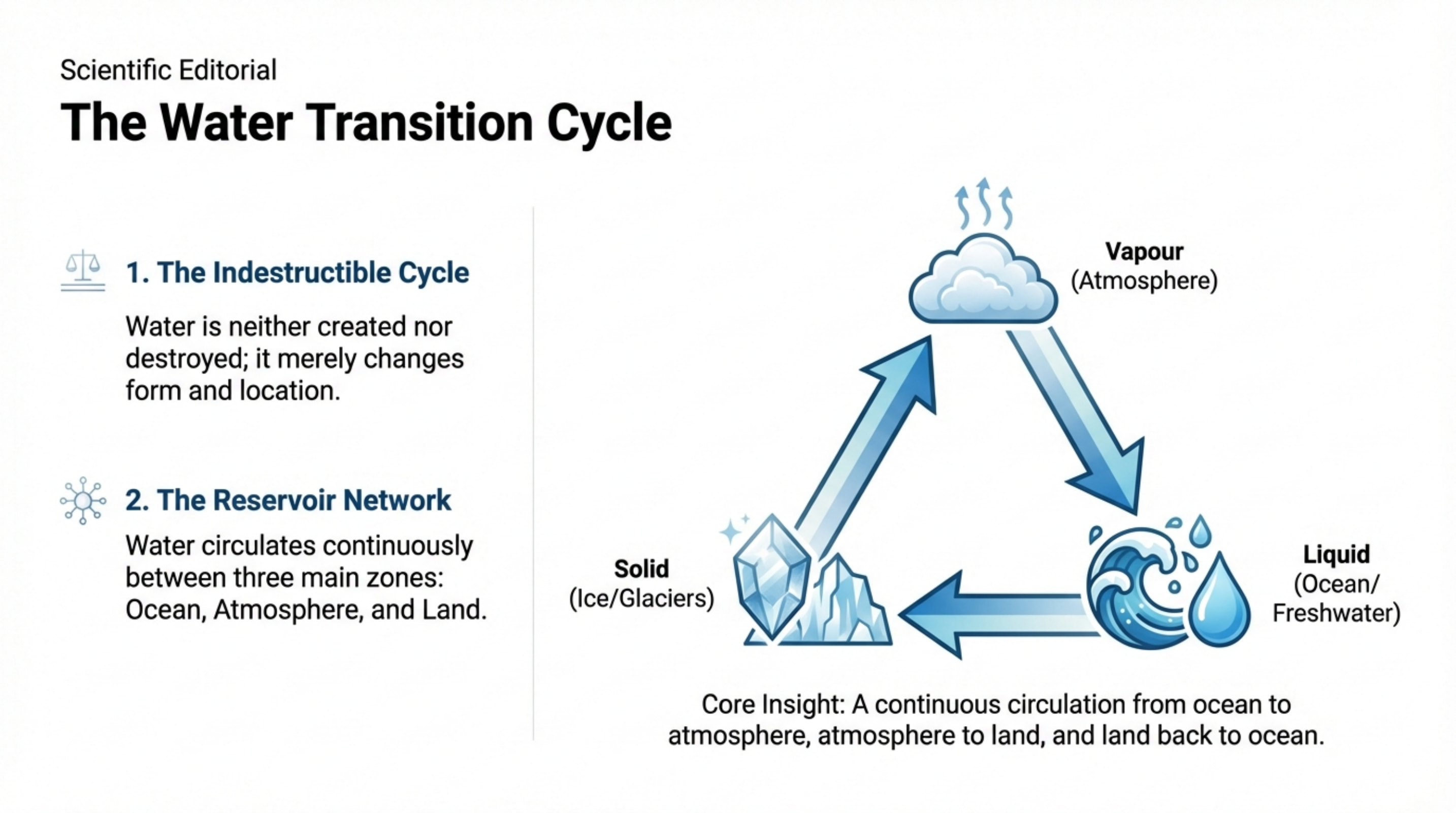

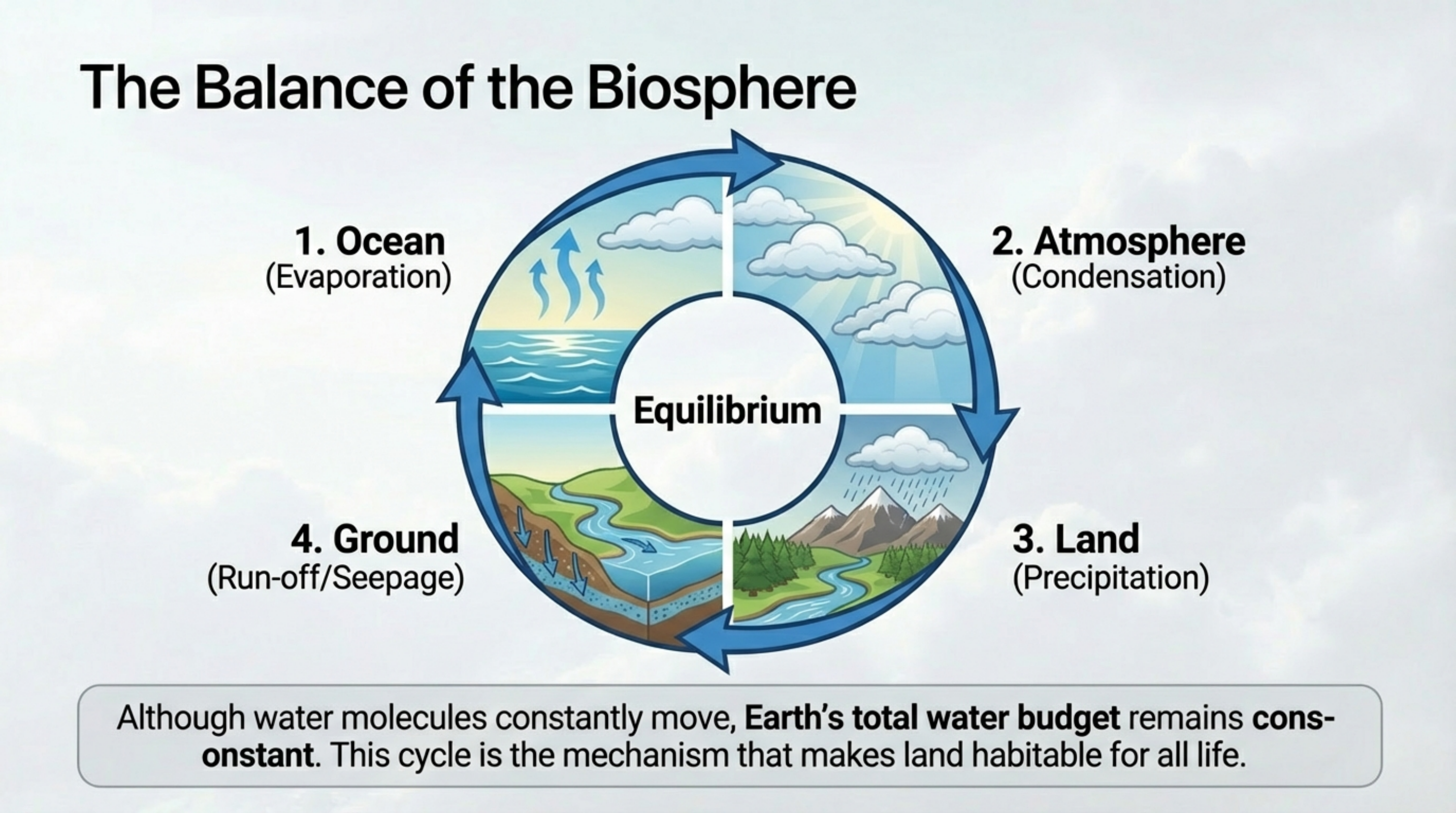

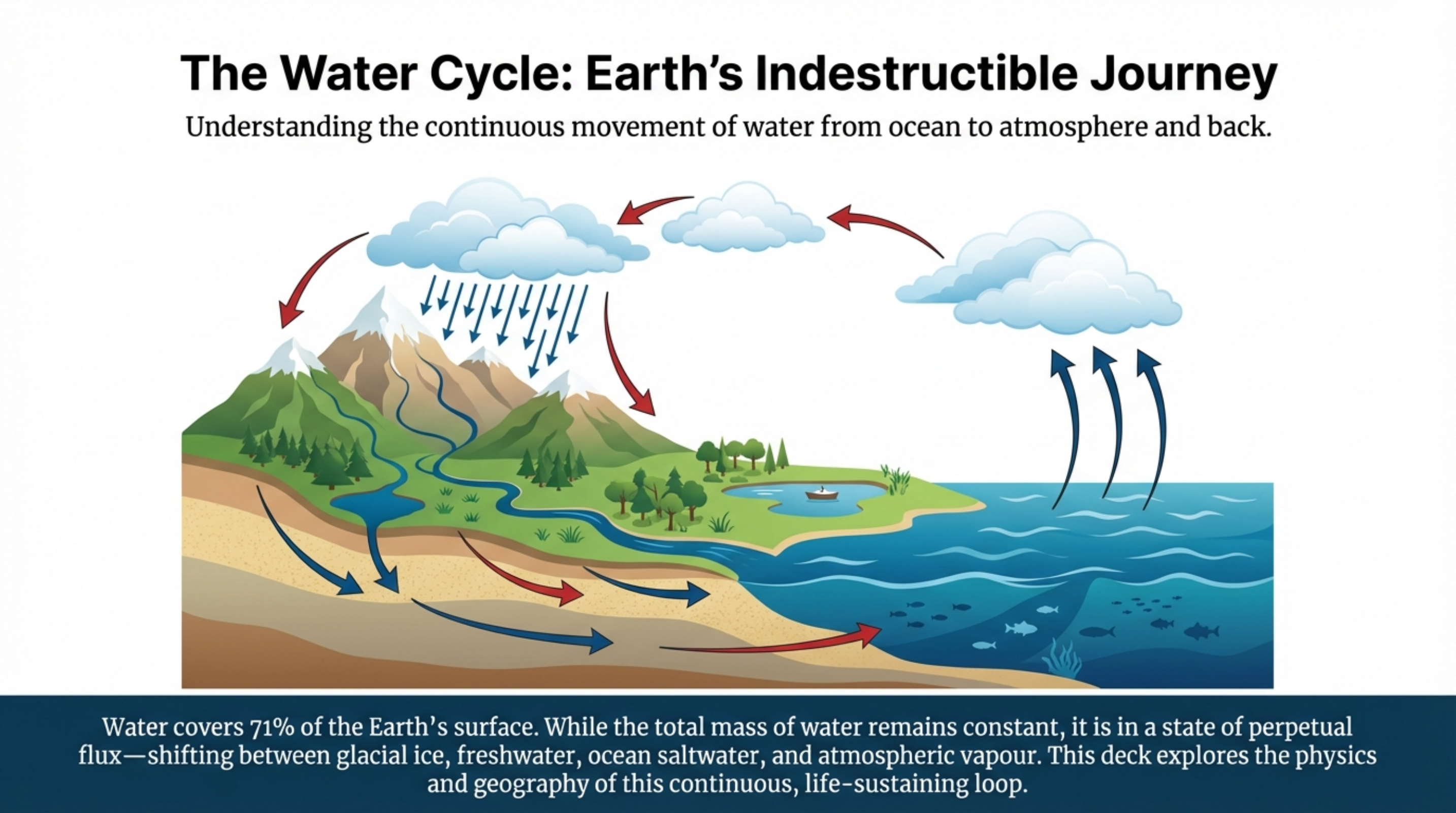

1. What is the water cycle and what are its three physical states?

The water cycle is the continuous circulation of water on Earth, involving its movement from oceans to the atmosphere, to the land, and back to the ocean. This indestructible cycle involves water transforming between its solid (ice), liquid (water), and gaseous (vapor) forms.

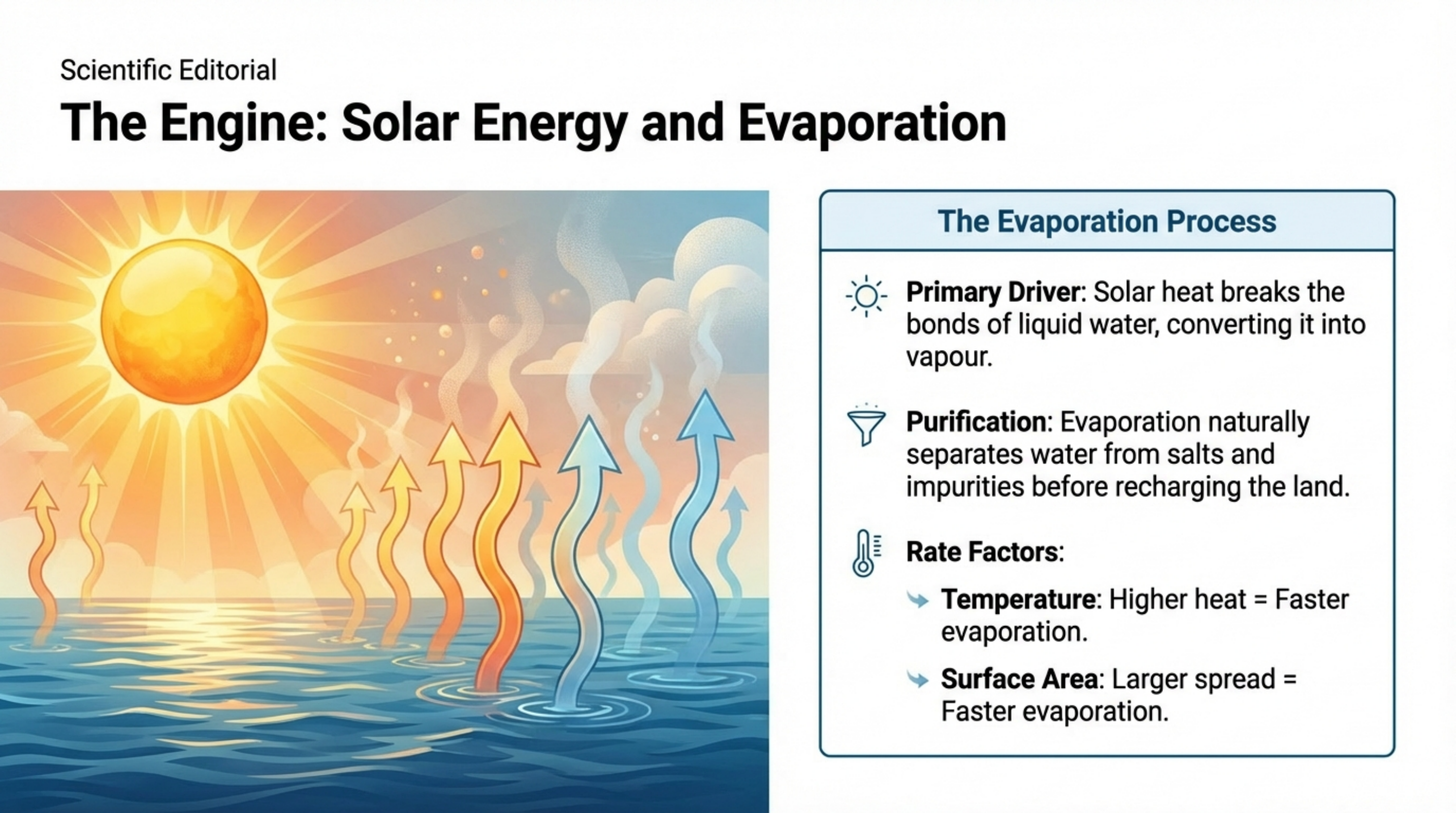

2. Explain the process of evaporation and identify the primary driver of this process.

Evaporation is the process by which water converts into vapor due to heat. The sun's solar energy is the major component or driver of the water cycle, causing water to evaporate from seas, lakes, and other sources. The rate of evaporation is higher at higher temperatures and with larger liquid surface areas.

3. How are clouds formed in the atmosphere?

Clouds are formed when water vapor, which is light and rises into the atmosphere, encounters cold air at high altitudes. This cooling causes vapor molecules to slow down, come together, and freeze around fine dust particles called condensation nuclei. Millions of these particles combine to form the visible droplets that make up a cloud.

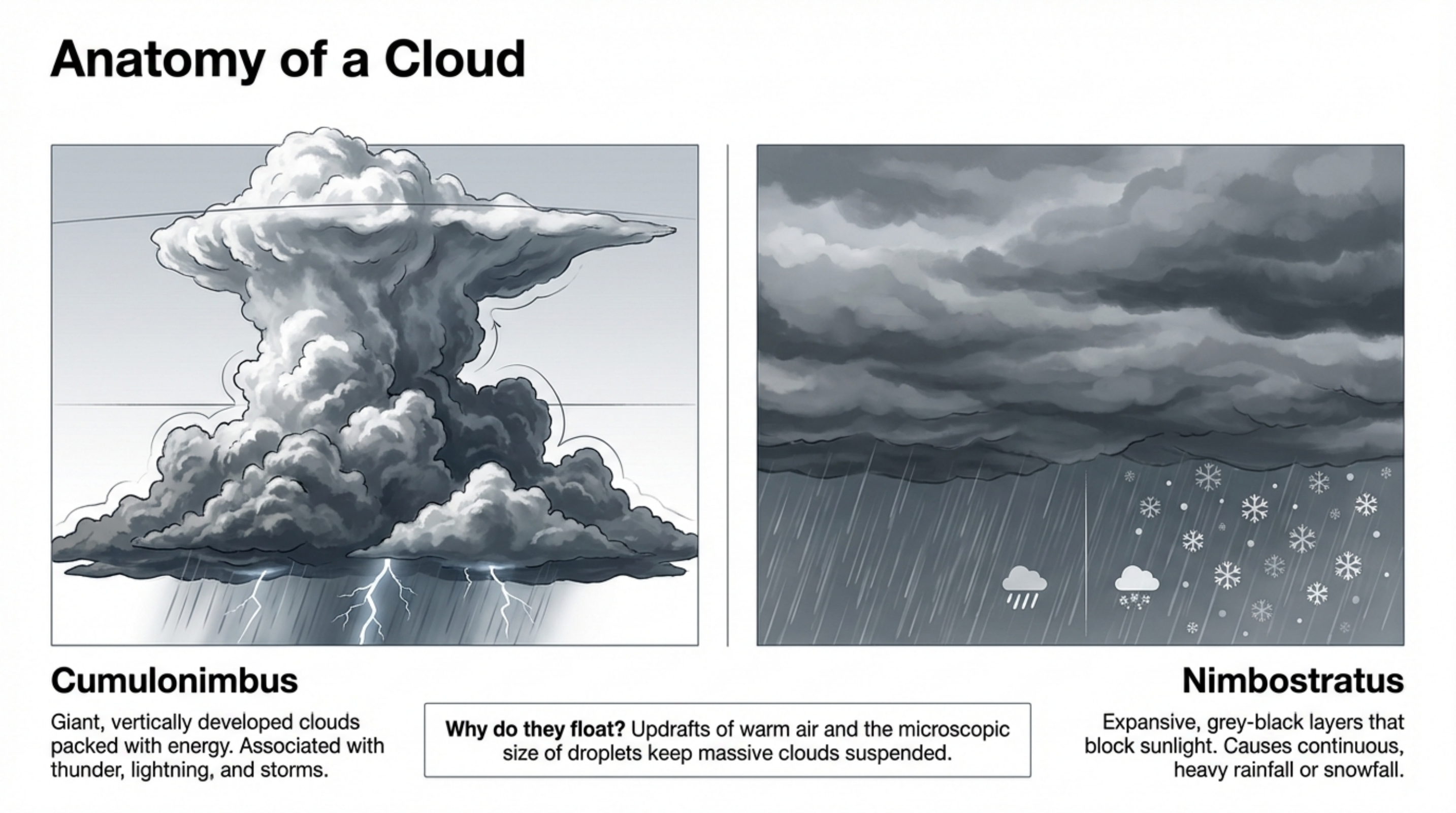

4. Name and briefly describe the two types of clouds detailed in the text.

Cumulonimbus clouds are giant or huge clouds that generate significant energy, resulting in thunder, lightning, and sometimes major storms. Nimbostratus clouds are very large, gray-black clouds that can cause heavy rainfall or snowfall at any time.

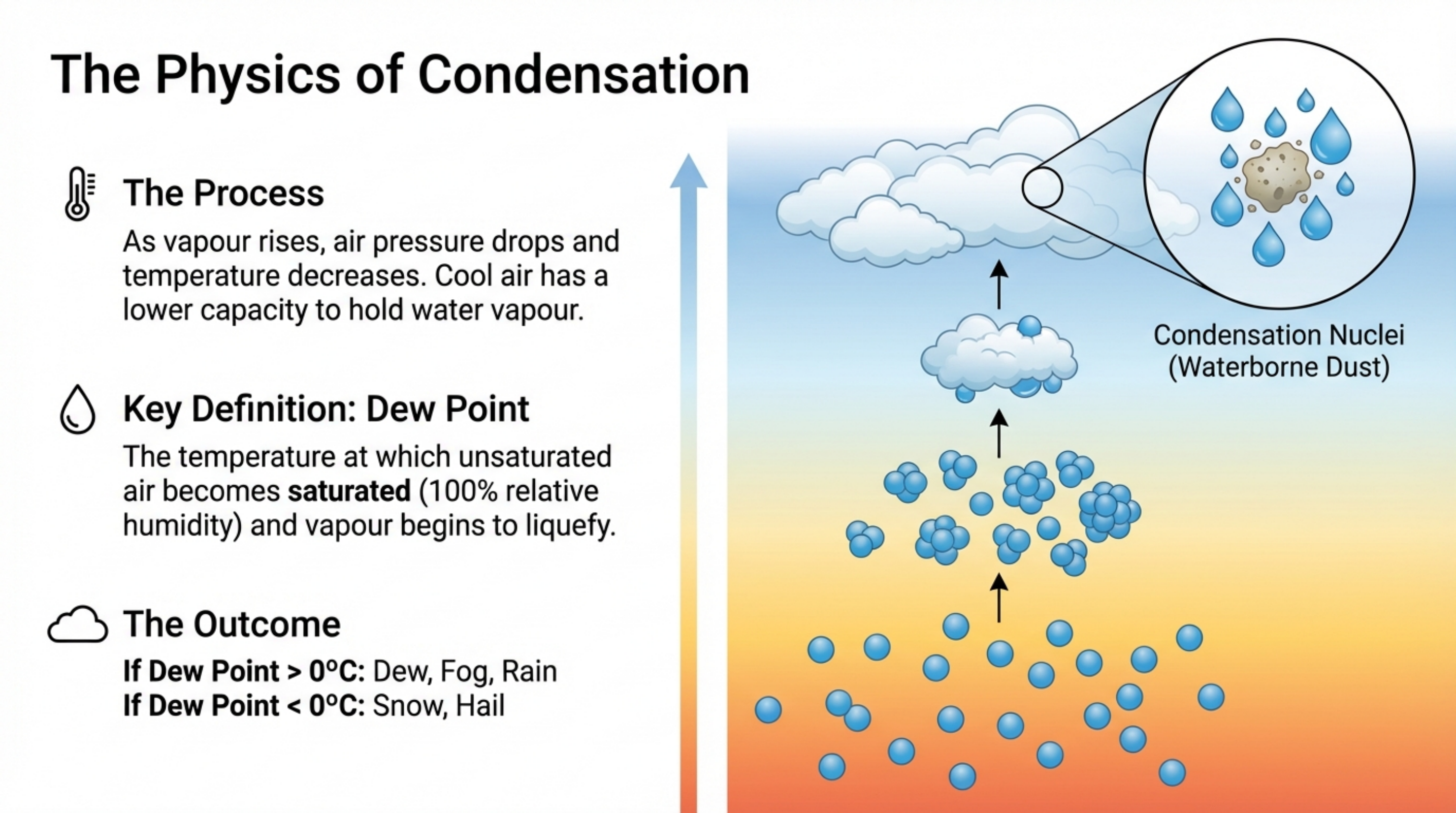

5. What is condensation, and on what two atmospheric factors does it depend?

Condensation is the process where water vapor in the atmosphere cools and is converted back into water particles. The action of condensation depends on two factors: the relative humidity of the air and the temperature of the air. As humid air's temperature decreases, its capacity to hold vapor lessens, leading to condensation.

6. Describe the process of resistance rainfall and explain what a "rain shadow region" is.

Resistance rainfall occurs when winds carrying vapor from the sea are blocked by high mountain ranges, forcing the air to rise. As the air rises, it cools, causing condensation and rain on the wind-facing side of the mountain. A "rain shadow region" is the area on the opposite side of the mountain which receives less rainfall because the air has lost its moisture and its vapor-holding capacity has increased.

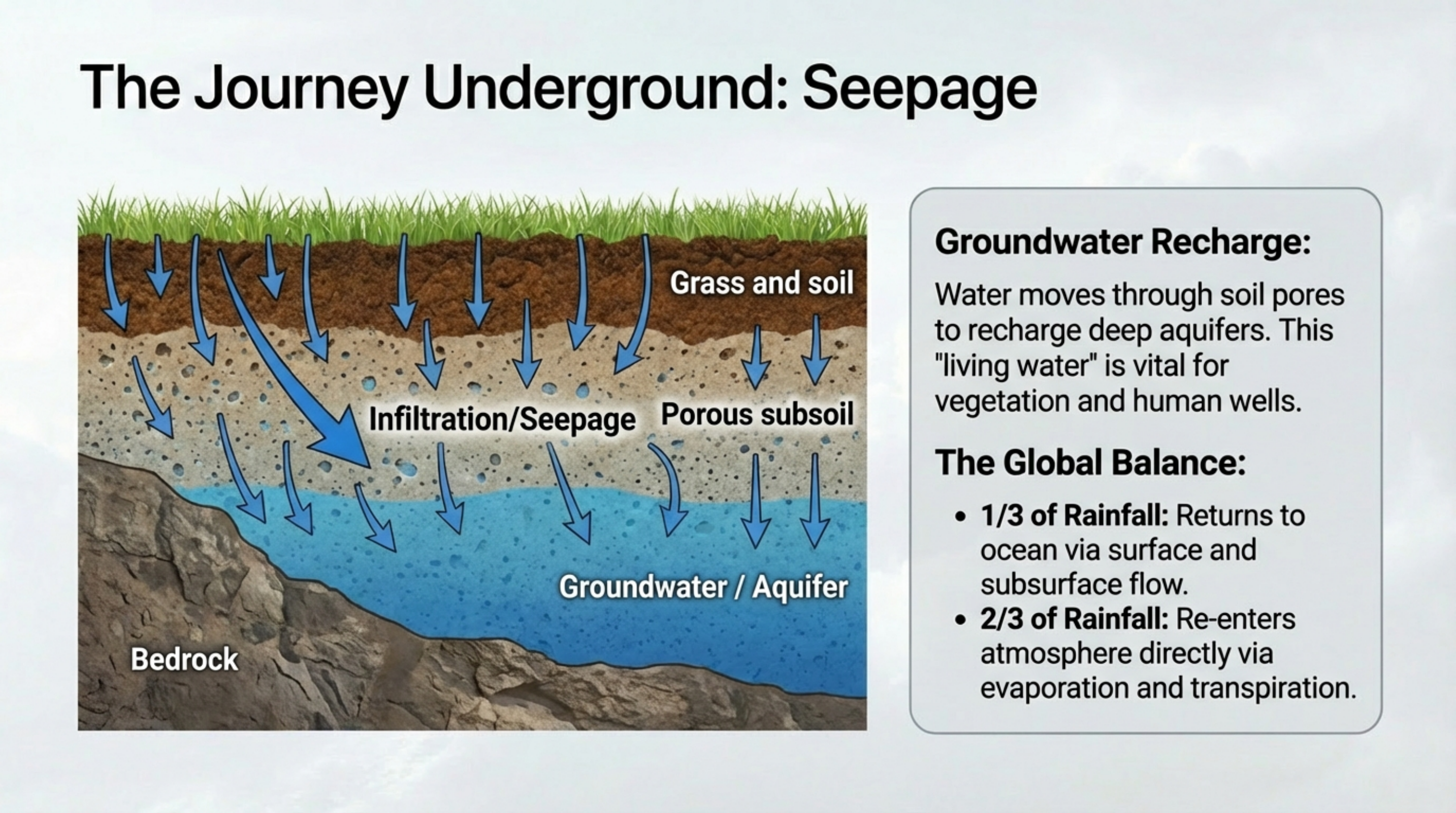

7. What is the difference between seepage and run-off?

Seepage is the process where some surface water soaks into the soil, becoming groundwater and recharging underground reservoirs. Run-off is the portion of rainwater that does not seep into the ground but instead flows over the land's surface, collecting in streams, rivers, and eventually making its way to the ocean.

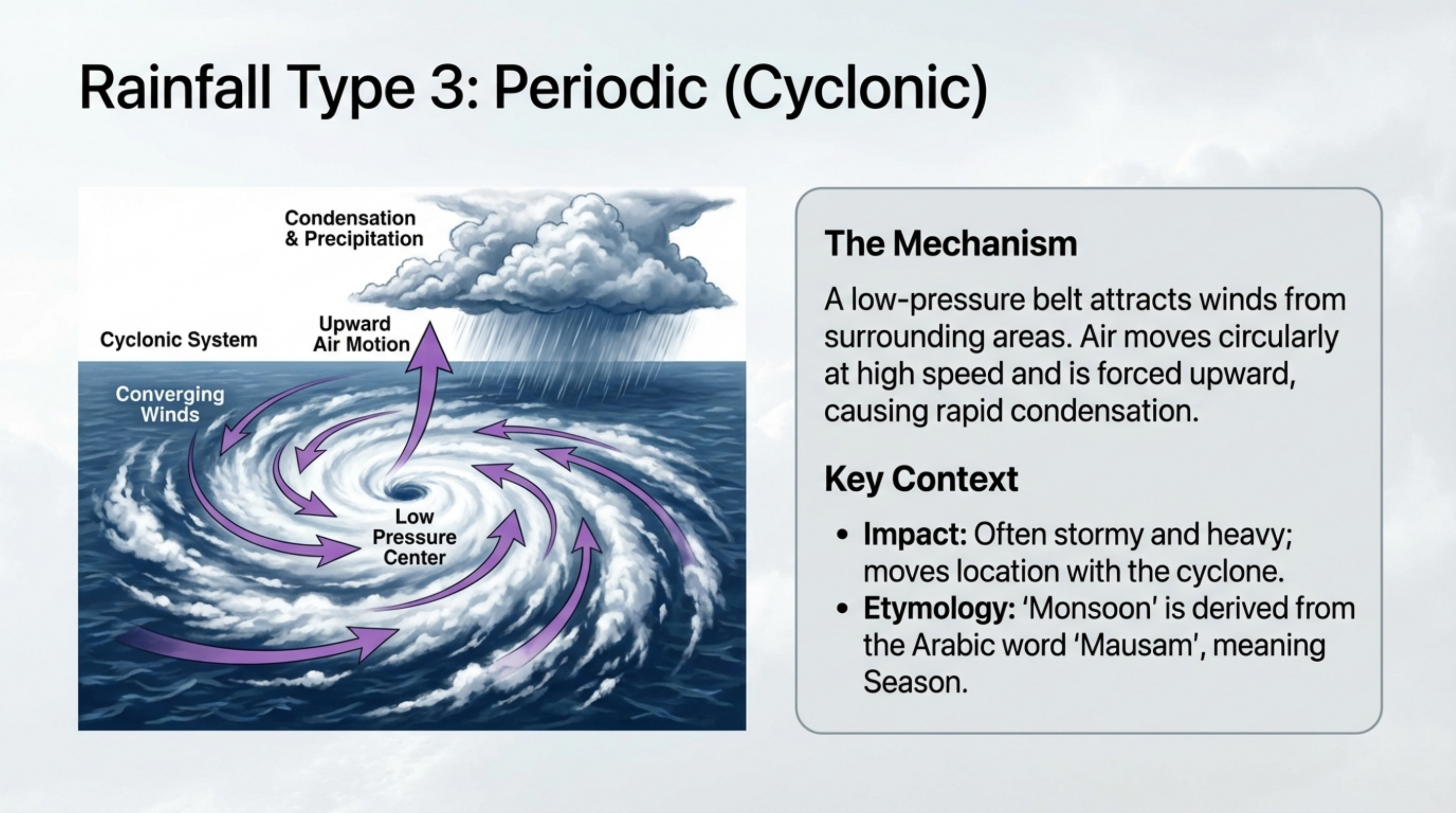

8. How does periodic (or cyclonic) rainfall occur?

Periodic rainfall occurs when a low-pressure belt forms, attracting winds from adjacent regions in a circular, high-speed motion called a cyclone. The air within the cyclone rises, its temperature decreases, and the vapor condenses, causing rain to fall wherever the cyclone passes.

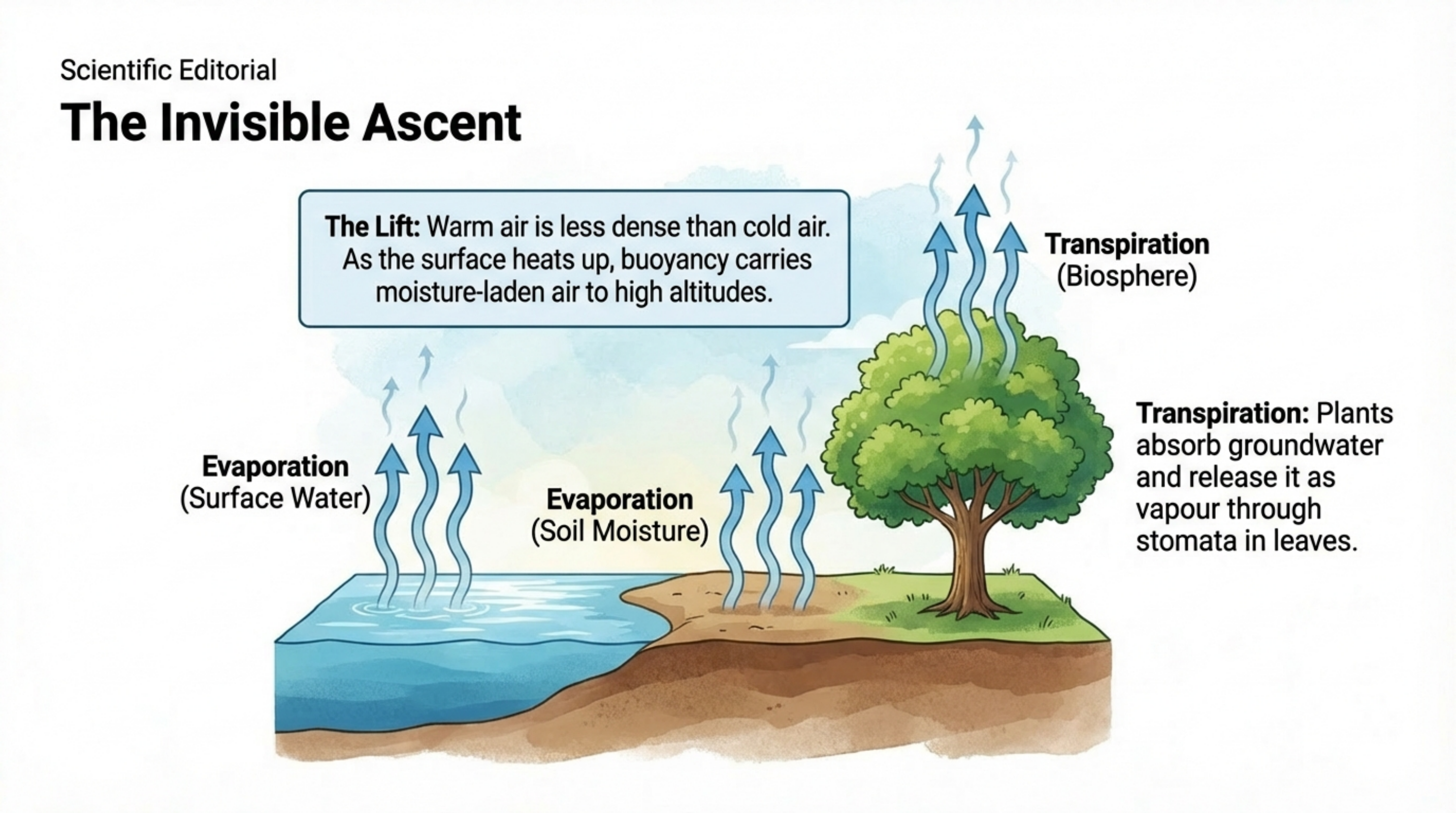

9. Beyond evaporation from bodies of water, what is another significant way water vapor enters the atmosphere?

Plants play a role in the water cycle through transpiration. They absorb groundwater through their roots and then release it back into the atmosphere as vapor through their leaves.

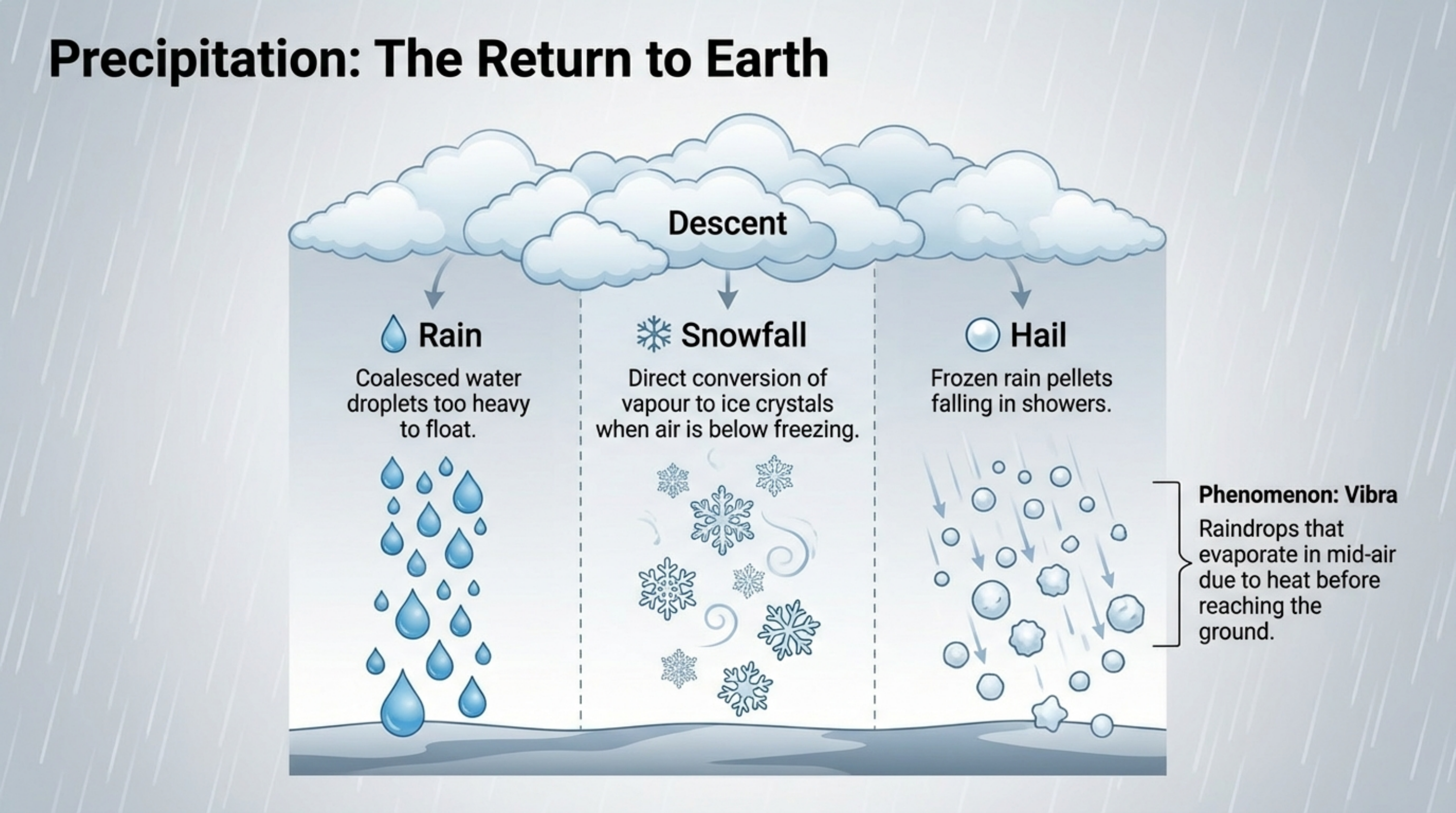

10. What is the definition of rainfall, and what are its different forms?

Rainfall is defined as water falling from clouds to the ground in liquid or solid form. The primary forms of rainfall are: rain (liquid water), snowfall (vapor converting directly to snow below freezing), and hail (pellets of frozen rain).

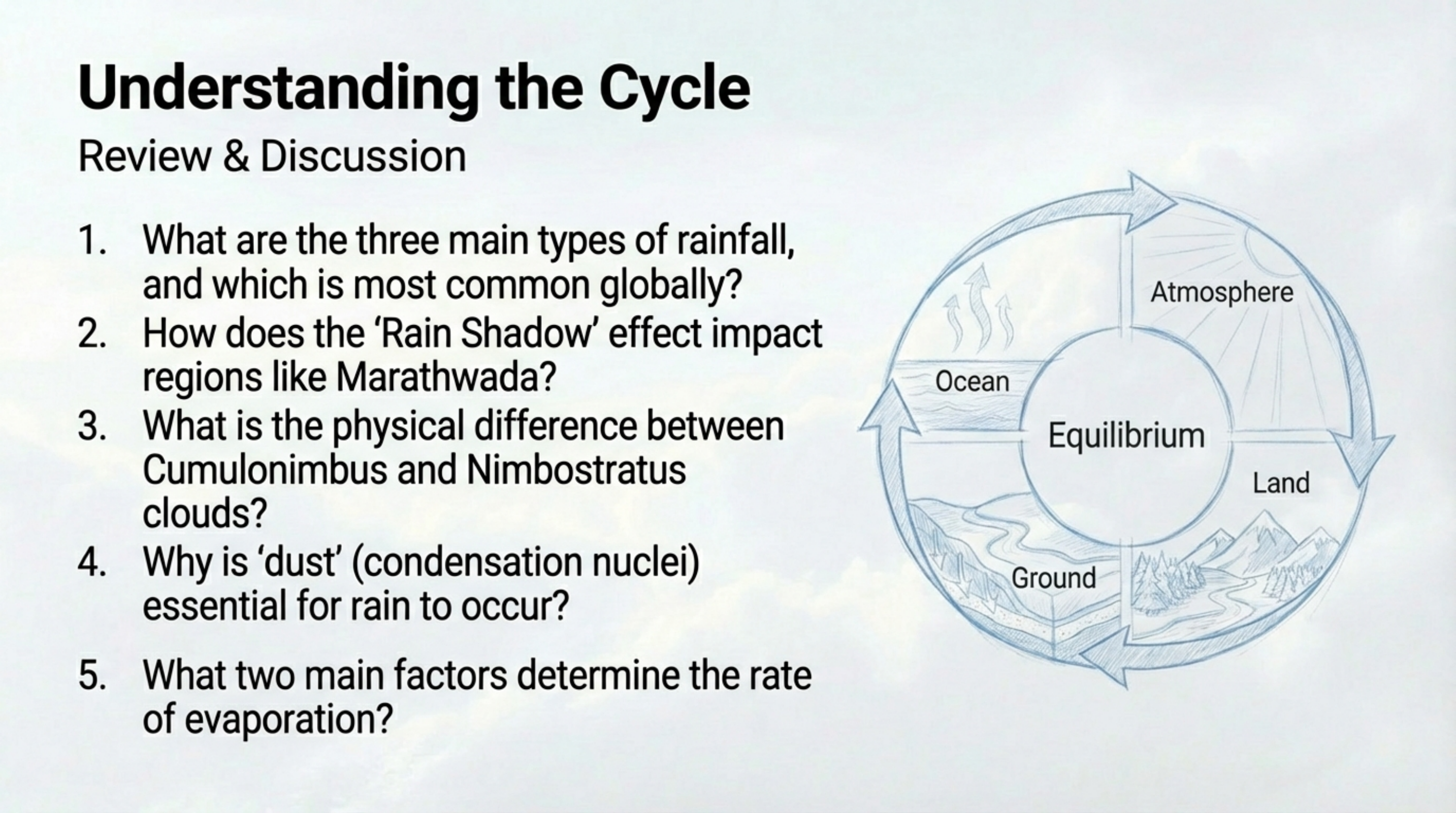

✍️ Essay Questions

Consider the following prompts for longer, essay-style responses to demonstrate a comprehensive understanding of the water cycle.

Trace the complete journey of a water molecule from the ocean, through the atmosphere, over land, and back to the ocean, describing in detail each major physical process it undergoes (e.g., evaporation, condensation, precipitation, run-off).
Discuss the critical role of solar energy and atmospheric temperature in driving the various stages of the water cycle, from initiating evaporation to determining the form of precipitation.
Compare and contrast the three types of rainfall discussed in the text: Ascending (Converging), Resistance, and Periodic (Cyclonic). Include the geographical and atmospheric conditions under which each is most likely to occur.
Explain the formation of clouds in detail, from the initial evaporation of water to the role of condensation nuclei, the reasons clouds float, and the difference between cloud droplets and raindrops.
Analyze the final stages of the water cycle after precipitation occurs. Detail the processes of seepage and run-off, explain the factors that influence them, and describe how this water ultimately returns to major reservoirs like the ocean.

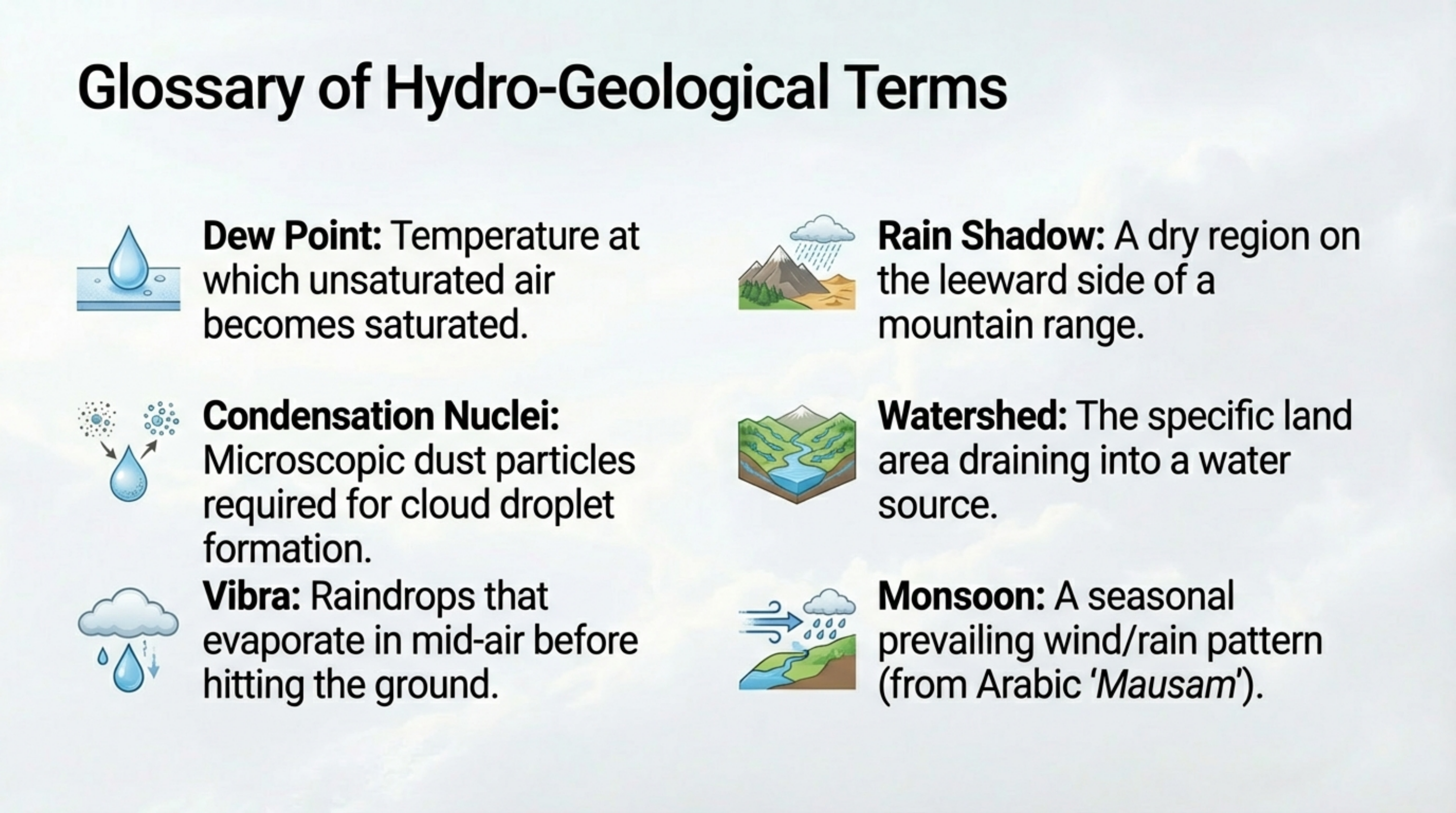

📚 Glossary of Key Terms

Water Cycle

The continuous and indestructible circulation of water on Earth, moving from oceans to atmosphere, to land, and back to ocean, changing between liquid, gaseous, and solid states.

Evaporation

The process by which water is converted into water vapor due to heat.

Condensation

The process by which water vapor in the air cools and is converted back into liquid water particles.

Precipitation

Water falling from clouds to the ground in liquid or solid form, such as rain, snow, or hail.

Transpiration

The process by which plants absorb groundwater and release it into the atmosphere as vapor through their leaves.

Condensation Nuclei

Fine dust particles in the air around which water vapor molecules accumulate and freeze to form droplets, which in turn form clouds.

Clouds

A form of water in the sky created when water vapor rises, cools, and condenses around fine dust particles.

Cumulonimbus

Giant clouds that generate large amounts of energy, resulting in thunder, lightning, and sometimes major storms or hurricanes.

Nimbostratus

Very large, gray-black clouds that can cause heavy rainfall or snowfall.

Dew Point

The temperature at which unsaturated air becomes saturated with vapor (reaches 100% relative humidity) and condensation begins.

Seepage

The process by which surface water from rain soaks into the soil, becoming groundwater and recharging underground sources.

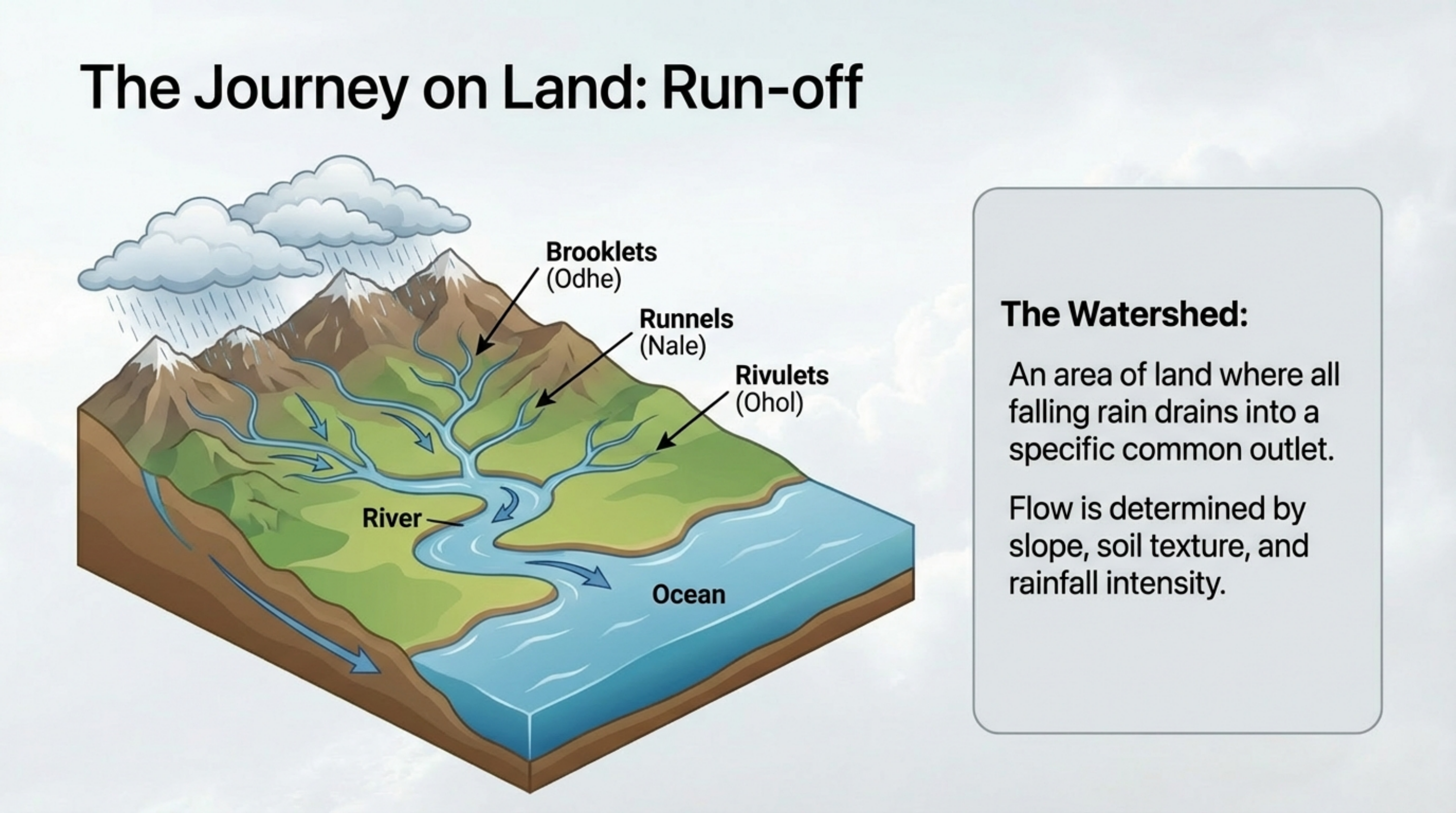

Run-off

The part of the water cycle where water flows over the land surface, collecting in streams and rivers and eventually returning to the ocean.

Watershed

An area of land where all the rainwater that falls is collected into a specific source of water, like a river or lake.

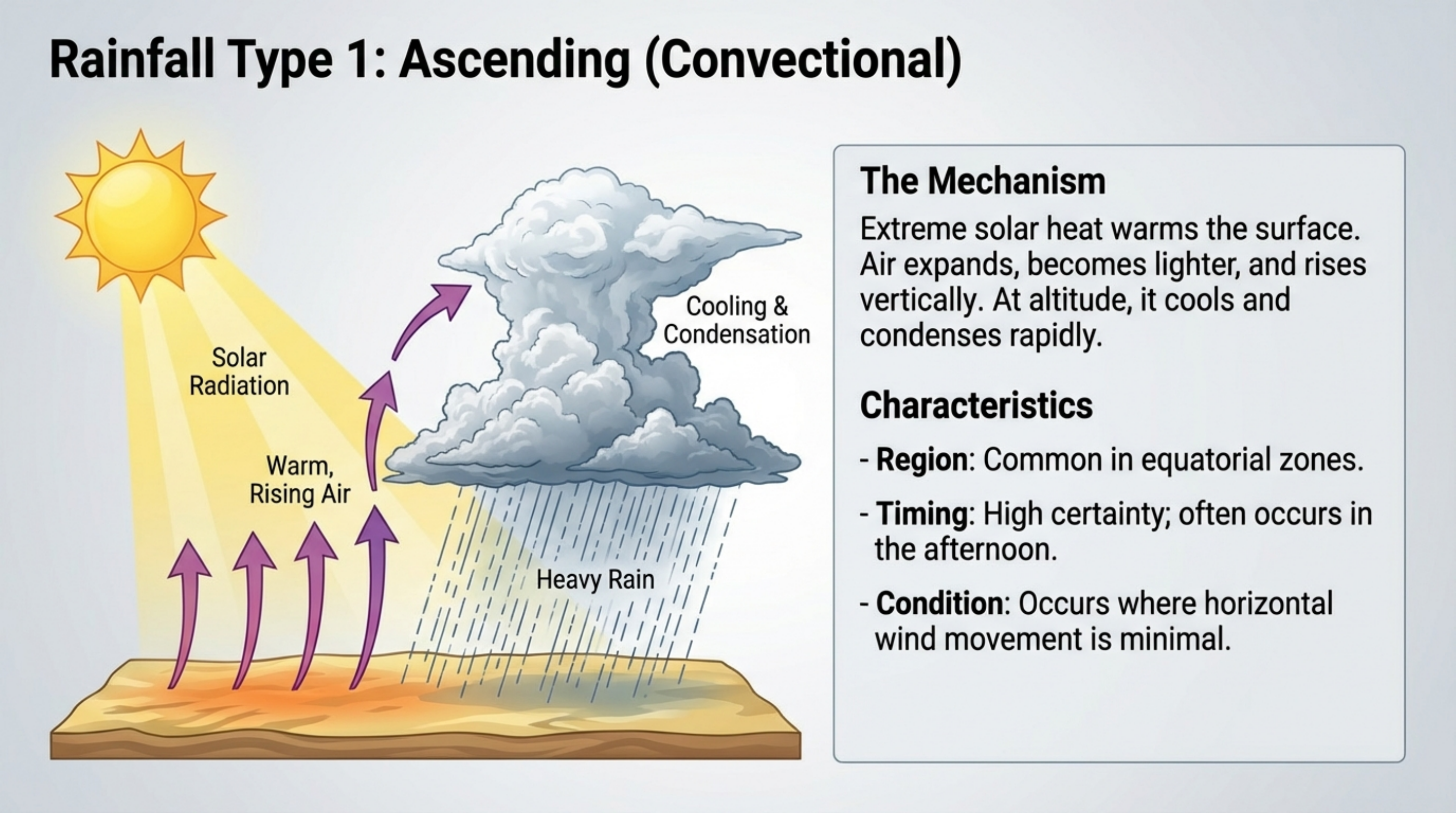

Ascending Precipitation

Rainfall that occurs in regions with large upward air movement. As air rises and cools, its evaporation capacity decreases, leading to condensation and rain.

Resistance Rainfall

Rain that occurs when vapor-laden winds from the sea are blocked by high mountain ranges, forcing the air to rise, cool, and condense.

Periodic (Cyclonic) Rainfall

Precipitation that occurs when winds are drawn into a low-pressure area, forming a cyclone. As the air rises, it cools, leading to condensation and rain.

Rain Shadow Region

An area with low rainfall located on the side of a mountain range away from the prevailing winds, where the air has lost most of its moisture.

Monsoon

The term for rainfall in the Indian subcontinent, derived from the Arabic word 'Mausam,' meaning season.

Snowfall

Precipitation where water vapor is directly converted into snow when the air temperature is below freezing.

Hail

Pellets of frozen rain that fall in showers. A form of precipitation.

📥 Download Study Guide PDF

🎴

Flashcards

Loading...

1 / 44

Click the card to flip and reveal the answer

📊

Data Table - Water Cycle Components

Process	Description	Physical State	Environmental Factors	Role in Cycle
Evaporation	Water is converted into vapour due to solar heat from oceans, lakes, and soil moisture.	Gaseous (Vapour)	Solar heat, temperature, surface area, wind	Purifies water and recharges atmospheric moisture
Condensation	Vapour rises, cools, and converts back into liquid water droplets or ice particles.	Liquid or Solid	Decreased air pressure, cooling temperature, humidity, condensation nuclei	Transforms vapour into cloud formations for precipitation
Precipitation	Water particles in clouds become too heavy and fall as rain, snow, or hail.	Liquid (Rain) / Solid (Snow/Hail)	Gravity, air temperature, wind, pressure belts	Returns water to Earth's surface, feeding rivers and groundwater
Transpiration	Plants absorb groundwater through roots and release vapour through leaves.	Gaseous (Vapour)	Solar heat, plant biological processes	Contributes 2/3 of water re-entering atmosphere from land
Cloud Formation	Tiny water droplets accumulate around dust particles, kept afloat by warm rising air.	Liquid or Solid	Cold air at altitude, solar heat, storms	Acts as carrier for water vapour before it falls as rain
Seepage	Surface water sinks into soil and subsoil to recharge groundwater supplies.	Liquid	Soil porosity, soil type, groundwater slope	Stores water underground and provides living water source
Run-off	Water that doesn't seep into soil flows over land surface into water bodies.	Liquid	Topography, rainfall intensity, soil texture	Transports 1/3 of fallen water back to oceans

❓

Interactive Quiz

Question 1 of 10

What is the primary energy source that drives the Earth's water cycle?

AThe Earth's rotation

BWind patterns

COcean currents

DThe Sun

Question 2 of 10

In the context of cloud formation, what is the role of fine dust particles in the atmosphere?

AThey increase the weight of clouds, causing rain.

BThey block sunlight, causing the air to cool.

CThey chemically react with water to form mist.

DThey act as condensation nuclei for water vapour.

Question 3 of 10

Which type of cloud is described as a 'giant or huge cloud' that can generate thunder, lightning, and sometimes hurricanes?

AVibra

BNimbostratus

CMist

DCumulonimbus

Question 4 of 10

A 'rain shadow region' is characteristically an area that receives little rainfall. What causes this phenomenon?

AHigh-pressure weather systems that prevent cloud formation.

BThe convergence of two dry air masses in the equatorial region.

CA large body of water that draws moisture away from land.

DAir moving over a mountain, losing its moisture, then descending and warming.

Question 5 of 10

What forms of precipitation can be expected if condensation occurs when the dew point is below 0°C?

AOnly liquid rain

BDew and fog

CIncreased evaporation

DHail or snowfall

Question 6 of 10

Which process in the water cycle specifically describes the release of water vapour from plant leaves?

ACondensation

BSeepage

CEvaporation

DTranspiration

Question 7 of 10

What is the term for rainfall caused by winds drawn into a low-pressure area, moving in a circular direction?

APeriodic Rainfall

BResistance Rainfall

CAscending Rainfall

DMonsoon Rainfall

Question 8 of 10

What is the key difference between surface run-off and seepage?

ASeepage happens quickly, run-off happens slowly.

BRun-off evaporates, seepage becomes permanent groundwater.

CRun-off flows over land surface, seepage soaks into soil.

DRun-off occurs in rivers, seepage occurs in lakes.

Question 9 of 10

How does the surface area of a body of water affect the rate of evaporation?

AA larger surface area leads to a higher rate of evaporation.

BEvaporation only depends on the depth of water.

CSurface area has no effect on evaporation.

DA larger surface area leads to lower evaporation.

Question 10 of 10

Which sequence best represents the main stages of the water cycle journey?

ACondensation → Precipitation → Evaporation → Run-off

BPrecipitation → Run-off → Condensation → Evaporation

CRun-off → Evaporation → Precipitation → Condensation

DEvaporation → Condensation → Precipitation → Run-off

0/10

Quiz Complete!

Review your answers above.

📋

Source References

Source 1: 1.1 - Water cycle.pdf (Maharashtra State Board Class 9 Textbook)

📖

Textbook Chapter

Download the official textbook chapter for this lesson:

📥 Download Chapter PDF
